Hindsight Bar End Mirrors – Compact, Minimalist

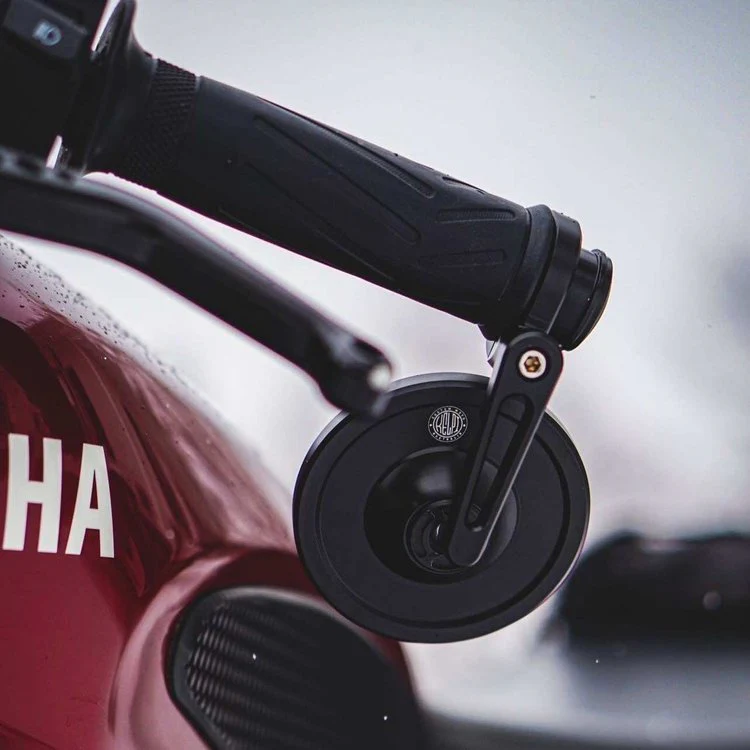

The Hindsight Bar End Mirrors are a refined and functional upgrade to enhance visibility, stability, and style. Built with a compact 75mm convex mirror face, they provide a clear, wide angle view while keeping a low profile, minimalist aesthetic to a wide range of modern, custom, and classic-styled motorcycles.

The vast majority of handlebars on the market either run a hollow bar end, or an M6 or M8 threaded insert. We’ve designed these mirrors to work with all three of these conventional setups whilst also being able to be clamped directly to a 7/8" inch bar, making them truly one of the most universal bar end mirrors on the market.

The compact 75mm convex mirror face is engineered for a wide angle distortion free view, featuring a UV-treated lens with a subtle blue tint to reduce reflection glare. A rubber mounted ball-and-socket joint allows for precise positioning while absorbing vibrations, ensuring a stable, shake free view even at high speeds. Able to be positioned at any angle, the Hindsights provide versatile adjustability, ensuring clearance for barkbusters, bar end indicators, and other accessories. With a combination of anodised cast and billet alloy construction that is secured with 316 high tensile stainless steel fasteners, these mirrors are market leaders for corrosion resistance, whilst being lightweight and durable.

Key Features

• 75mm convex mirror face with a UV treated lens for wide angle visibility in a compact form (1200mm curvature radius)

• Universal fitment with adapters for 7/8” (22mm), 1” Harley, and fat bars (7/8” tapering to 1+1/8”) Minimum handlebar inner diameter of 14mm required.

• Direct bolt up to M6 and M8 threaded bar end inserts

• CNC-machined billet alloy construction with a black anodised finish

• Sold as a pair

---

Fitment & Mounting

Please refer to the fitment kit chart below for a guide on which fitment kit to select with your mirrors:

Kit Option	Fits Models	Inclusions	Reference Image
1. Universal Kit	All bike models with a standard 7/8 handlebar Yamaha MT09 (2024+)	2x sizes of aluminium expansion sleeves 2x M6 bolts 2x M8 bolts 2x rubber sleeves (can be used in lieu of aluminium expansion sleeves if bar ID is too narrow)	HERE
2. Honda M6 + Spacer	CB650R (2014+) CBR650R (2014+) CBR500 (2014+)	2x M6 bolts to fit OEM threaded inserts 2x Nylon spacers to align with keyed tabs on OEM inserts and ensure clearance with mirrors	HERE
3. Kawasaki Tapered Bar End Cap	Z650RS (2022+) Z900RS (2017+) Z800 (2013-2016) Z900 (2017+) Z1000 (2003+) Z1100 (2025+) Ninja 400 (2018+) Ninja 650 (2012+)	2x Nylon bar-end caps with tapered cutouts to accept the tapered OEM bars.	HERE
4. Triumph M6 + End Caps	Trident 660 (2021-2025) Tiger Sport 660 (2022+) Scrambler 1200 (without factory handguards)	2x M6 bolts to fit OEM threaded inserts 2x Nylon end-cap pieces to cover exposed hardware after install	HERE
5. Yamaha M6 + Spacer	MT03 (2016-2024) MT09 (2021-2023) MT07 (2025+) R7 (2022-2026+)	2x M6 bolts to fit OEM threaded inserts 2x Nylon spacers to align with keyed tabs on OEM inserts and ensure clearance with mirrors	HERE
6. Yamaha M16 Threaded Insert	FZ07 (2015-2017) FZ09 (2014-2017) FZ6 (2003-2009) FZ6R (2009-2017) MT07 (2018-2024) MT09 (2018-2020) MT10 (2017-2026+) XSR700 (2018-2026+)	2x Replacement bar-end weights for mirror arms to clamp onto	HERE
7. Yamaha M16 threaded Insert + Spacer	XSR900 (2016-2026+)	2x Replacement bar-end weights for mirror arms to clamp onto 2x Spacers to fill gap between grips and mirror arms	HERE



Find the Right Fit

We’ve installed these mirrors on countless motorcycles, and we’re pretty handy at guiding you through the process if you’re unsure. Feel free to give us an email if you’d like more information on fitment specific to your bike model, and please include details on the bar end setup and photos to assist us in giving you the best information.
